MWE 結構式滑軌 Vario

MWE Sliding Door, Vario - ST.1005.VA

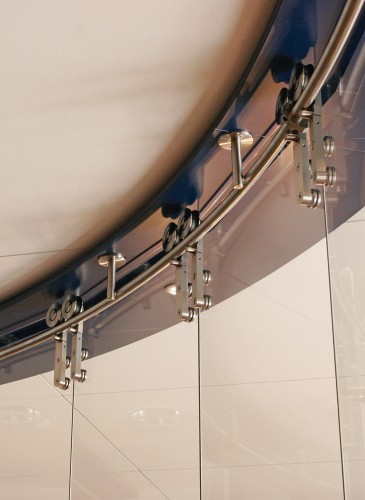

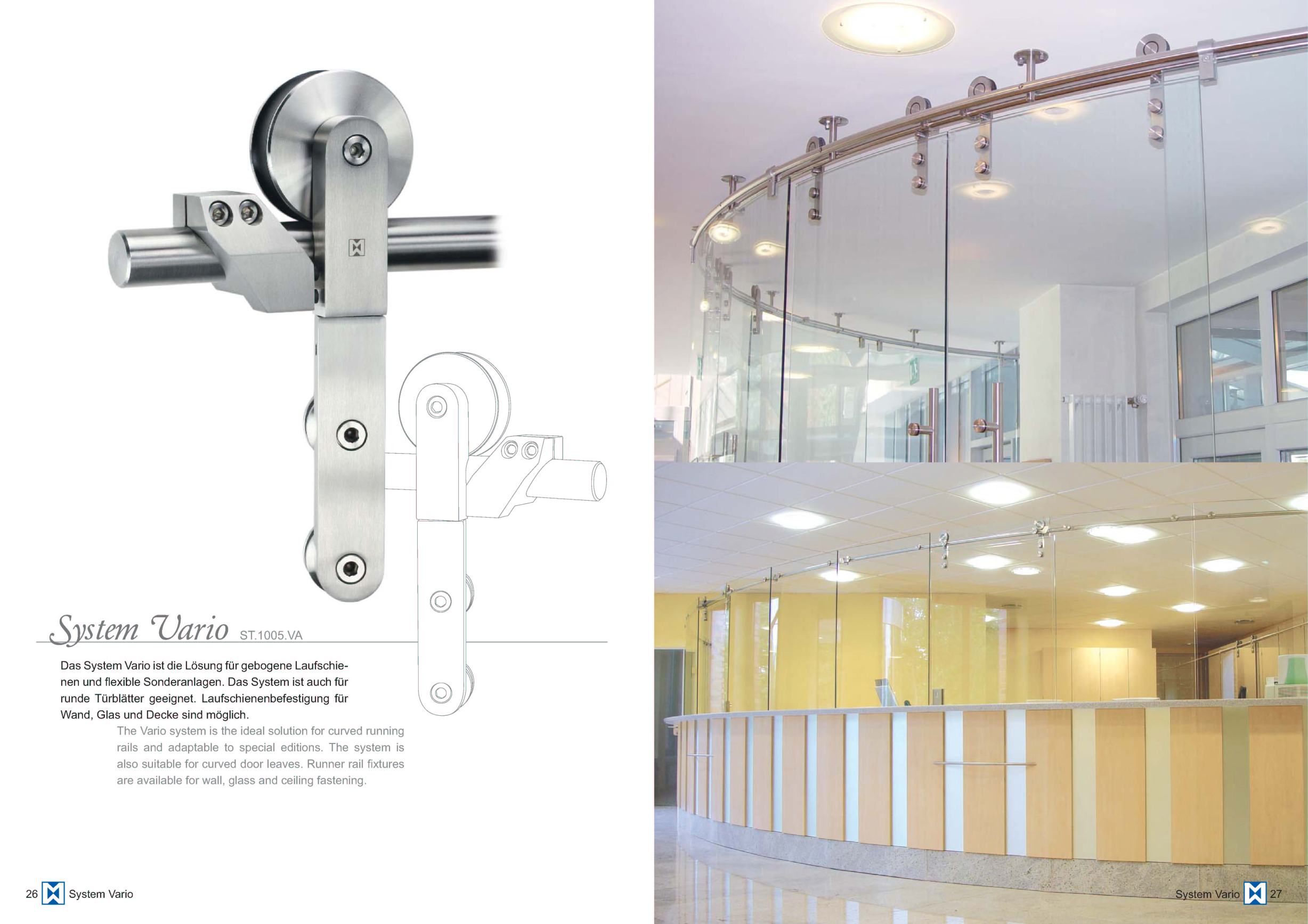

The Vario system represents the ideal solution for curved runner rails and is easily adaptable to custom specifications.  Vario could also be used with curved door leaves.  Runner rail fixtures are available for wall, glass and ceiling installation.

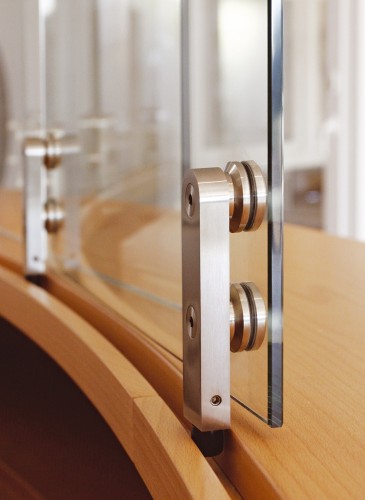

When using curved runner rails or door leaves the bottom blade ST.4005.17 functions as floor guide.  Either the dowel pin is moving smoothly in a u-profile of the same radius or – as in our example – in a milled slot.  Two glass point fixations guarantee highest possible stability and allow for a subsequent height adjustment up to :schemas-microsoft-com:office:smarttags" />2 mm.

:schemas-microsoft-com:office:office" />

ST.2005.VA       25mm 弧形滑軌 - 1500mm以內    NT$47,051.-

                           25mm 弧形滑軌 - 2000mm以內    NT$59,529.-

                           25mm 弧形滑軌 - 每100mm          NT$2,471.-

ST.2105.VA       滑軌固定座 50mm 每個                NT$2,471.-

ST.1005.VA       門扇吊具 每組兩個                      NT$59,034.-

ST.3005.VA       煞車 (左/右) 每組                          NT$21,246.-

ST.4005.17.VA  門扇地導 每組兩個                       NT$43,972.-

ST.4008.40         防止搖擺器 每個                           NT$3,457.-
